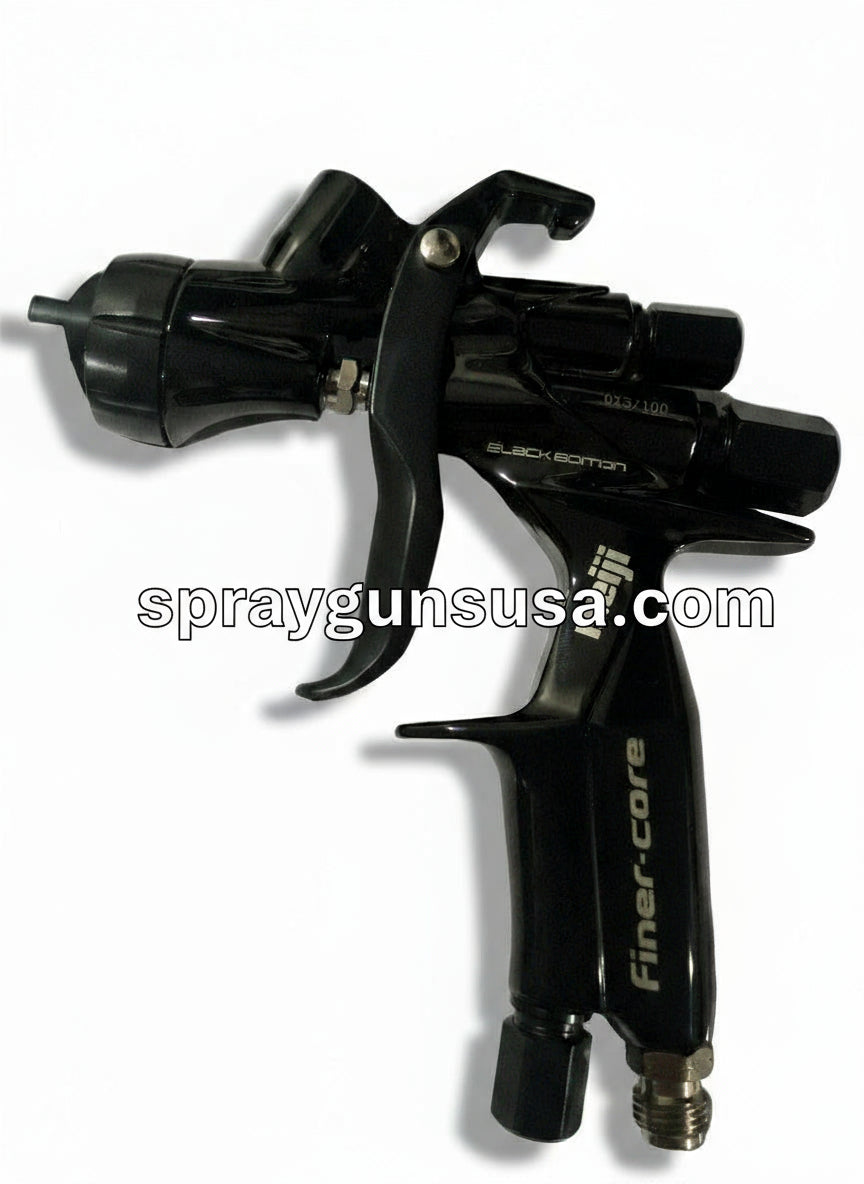

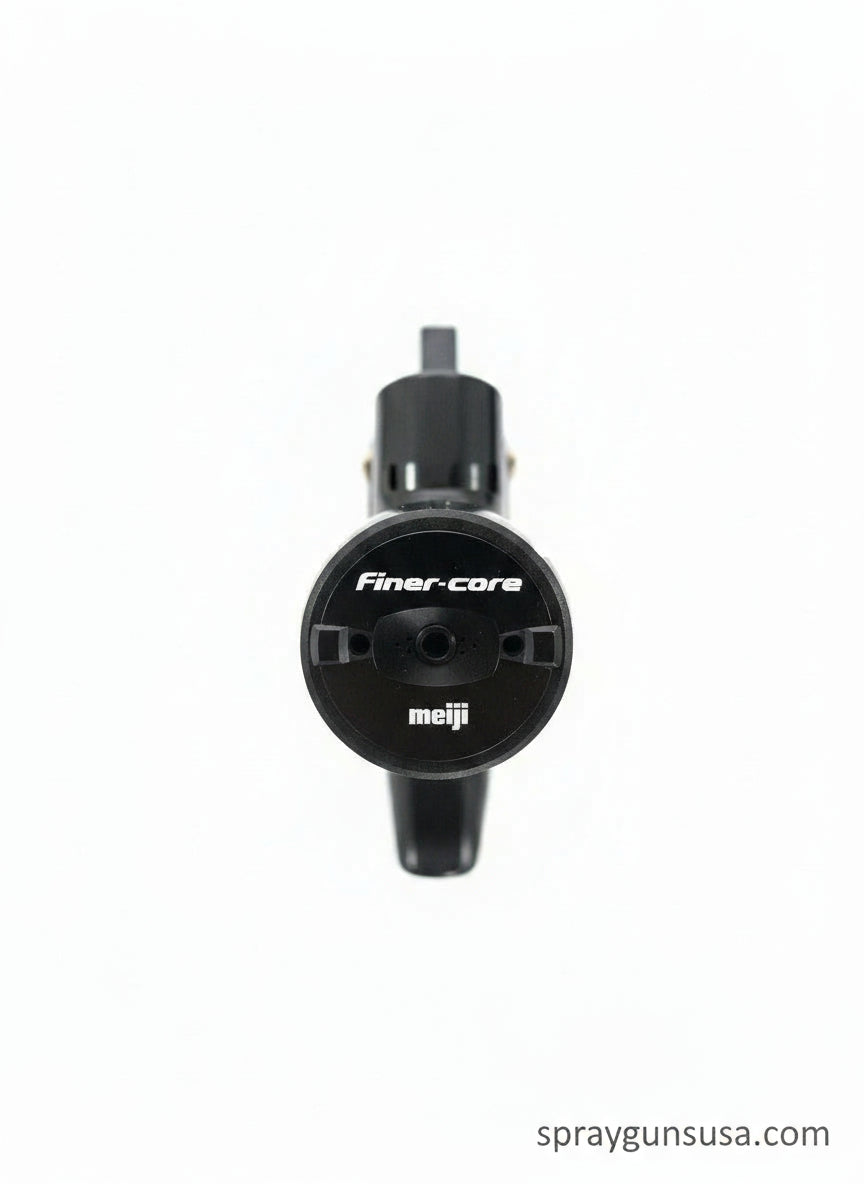

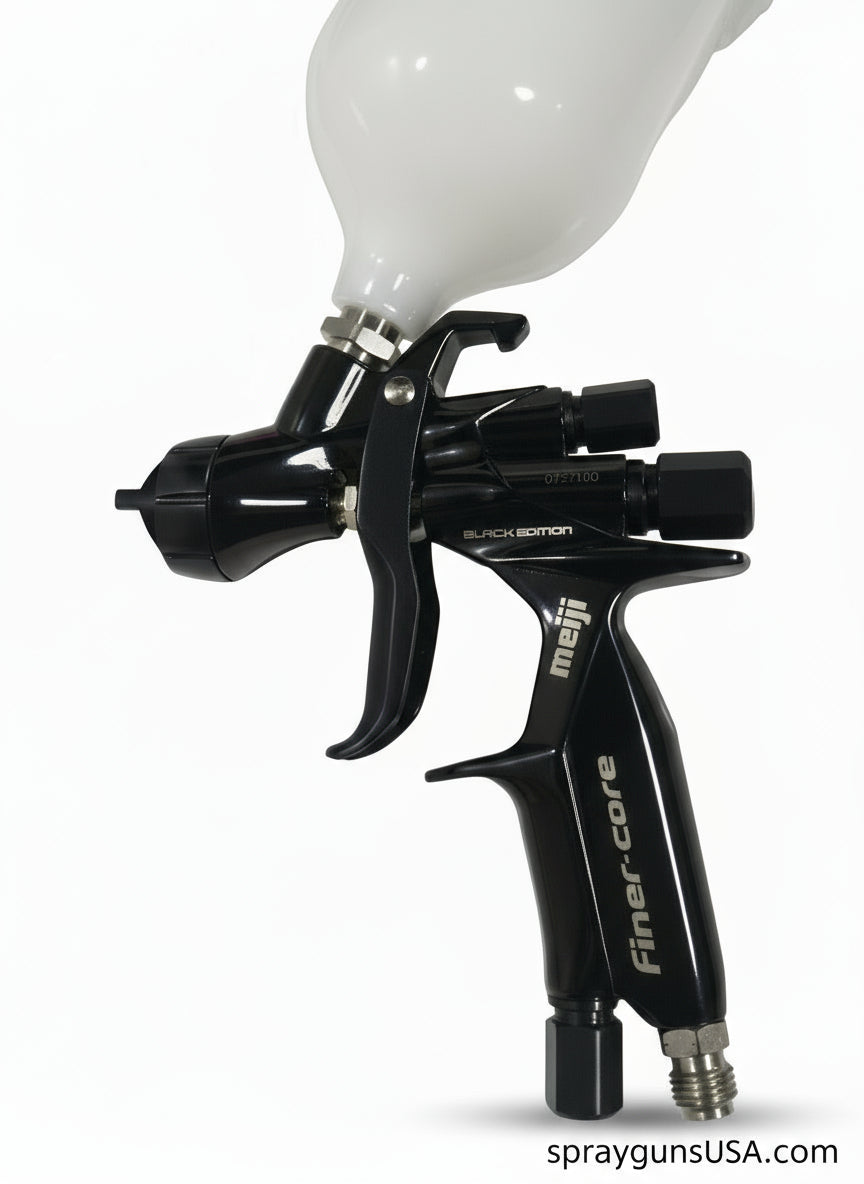

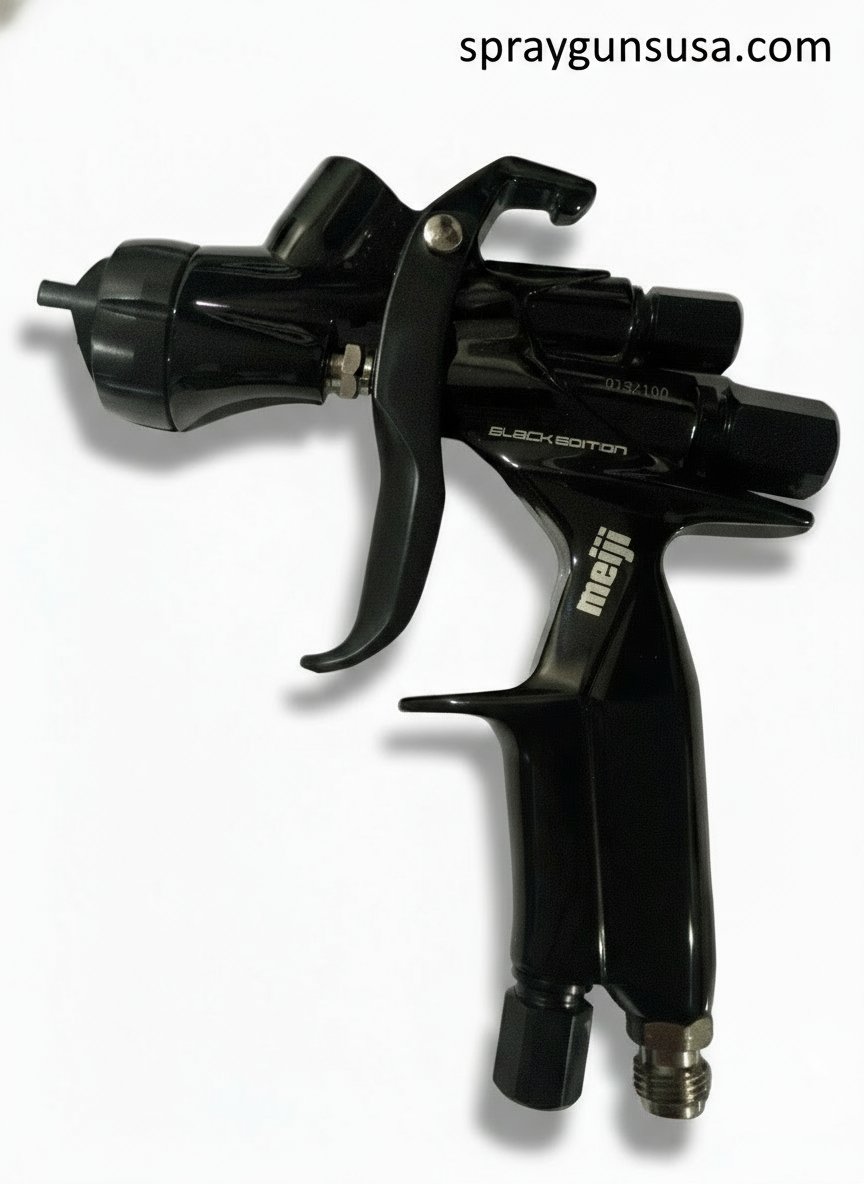

Same quality as the original Finer-Core but in a black limited edition. There was only 100 of these made, so stock is very limited. All of these we have listed come with a plastic cup.
Specifications
Model
FINER-CORE-13
FINER-CORE-15
FINER-CORE-HVLP-13
FINER-CORE-HVLP-15
Fluid nozzle bore
1.3mm(0.051in)
1.5mm(0.059in)
1.3mm(0.051in)
1.5mm(0.059in)
Air cap style
FINER-CORE
FINER-CORE-HVLP
Spraying pressure
0.2MPa 29PSI
0.18MPa 26PSI (0.07MPa 10PSI)
Spraying distance
200mm (7.874in)
Air consumption
300L/min(10.6cfm)
380L/min(13.4cfm)
Paint spraying volume
170mL/min
200mL/min
135mL/min
155mL/min
Maximum effective pattern
280mm(11.024in)
300mm(11.811in)
280mm(11.024in)
300mm(11.811in)
Connection bore
accepts G1/4 1/4NPS for air G3/8 for paint
Body weight
340g
0.75lbs
11.9oz
*The paint viscosity should be 20 seconds for lacquer enamel using Meiji model V-1 viscosity cup.
